Cabinets with Drawers to Top

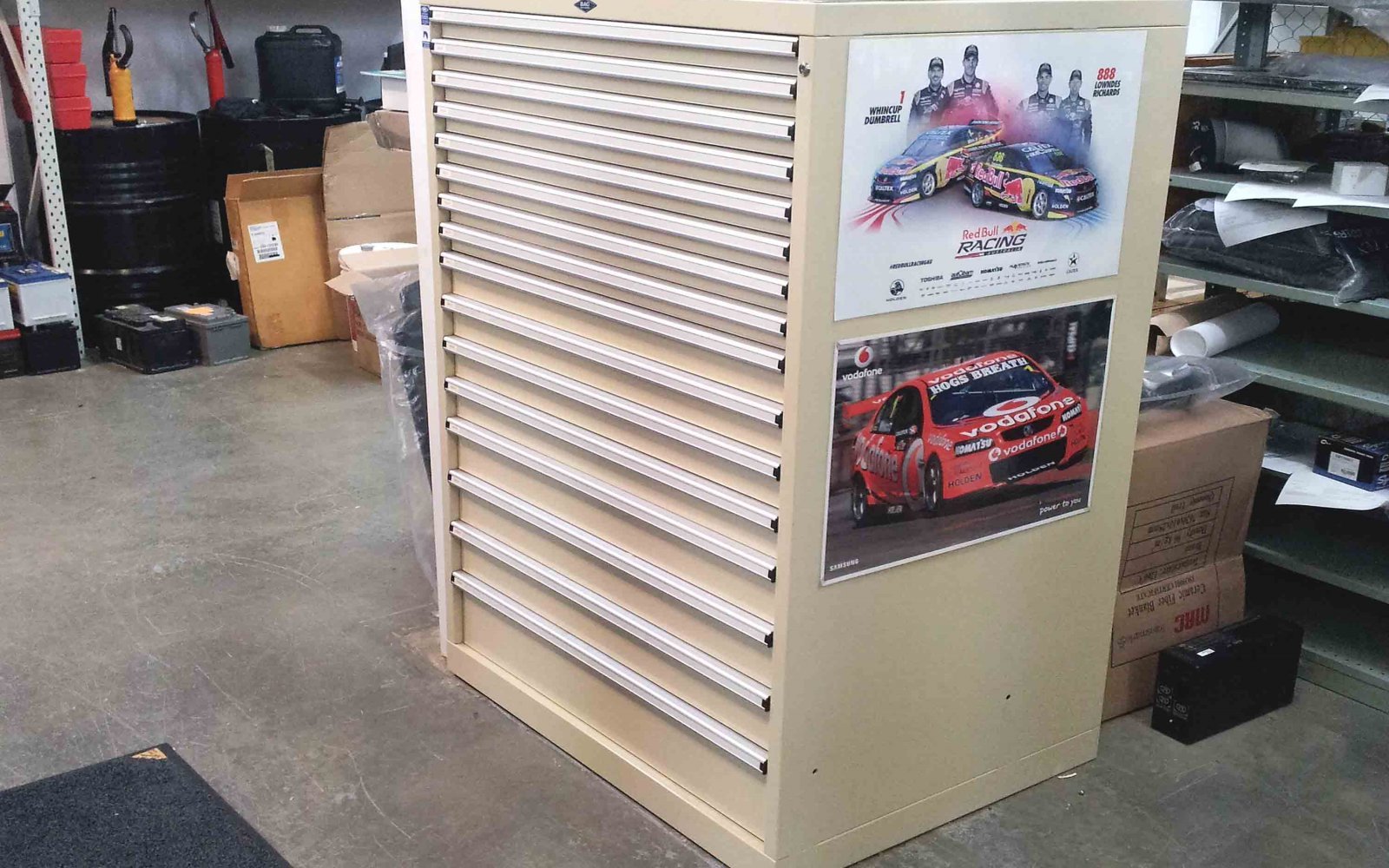

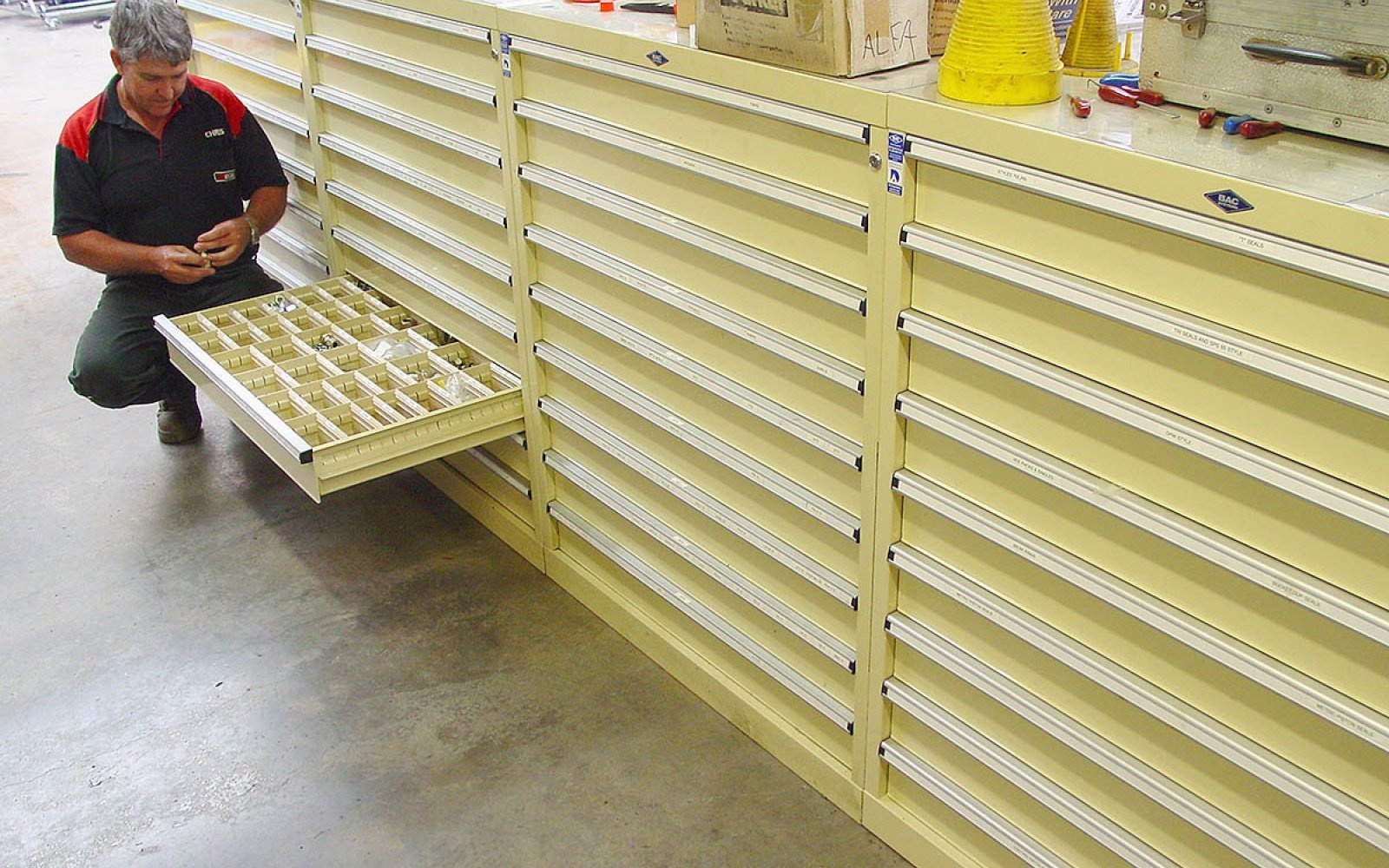

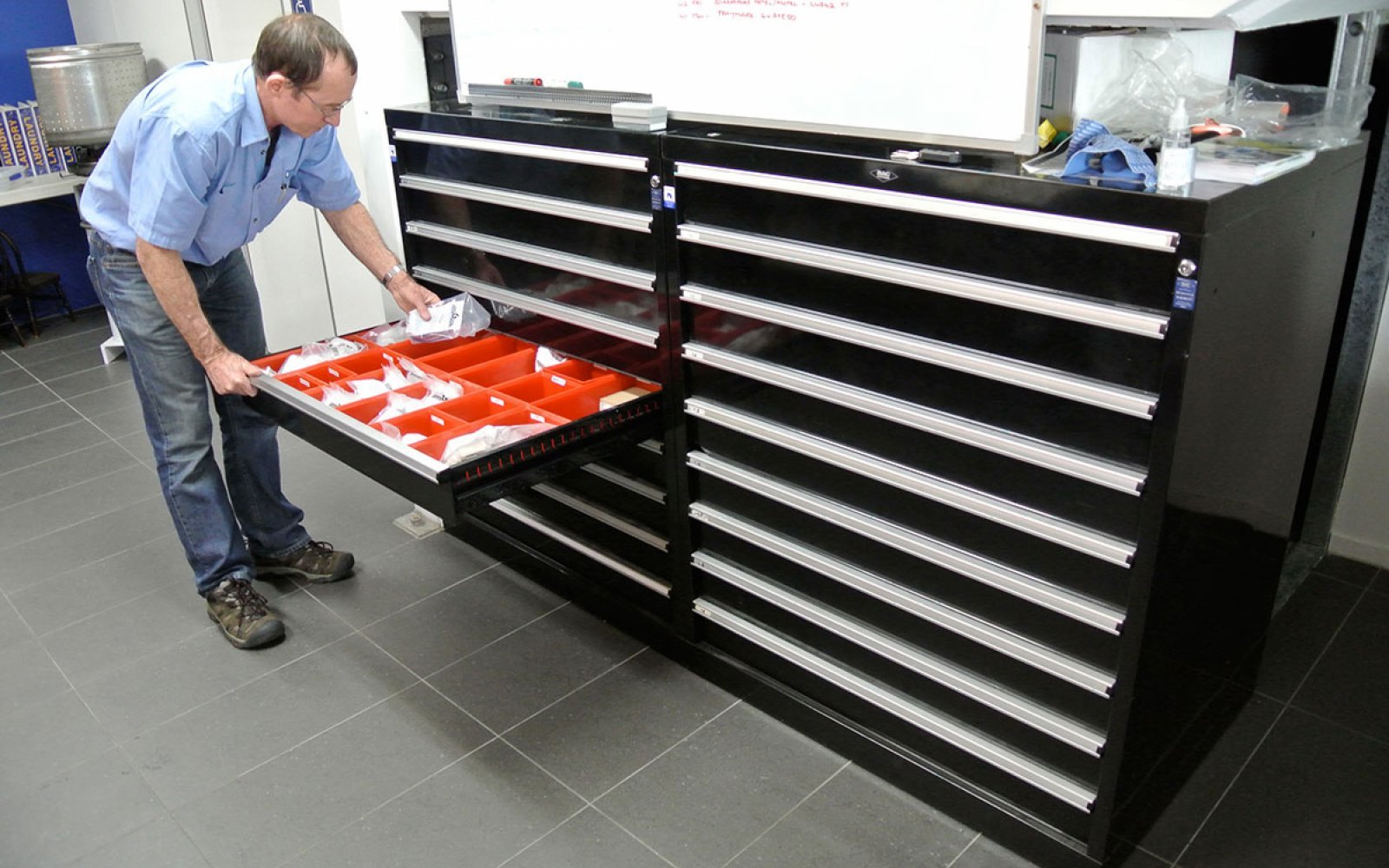

Full Drawer Cabinet

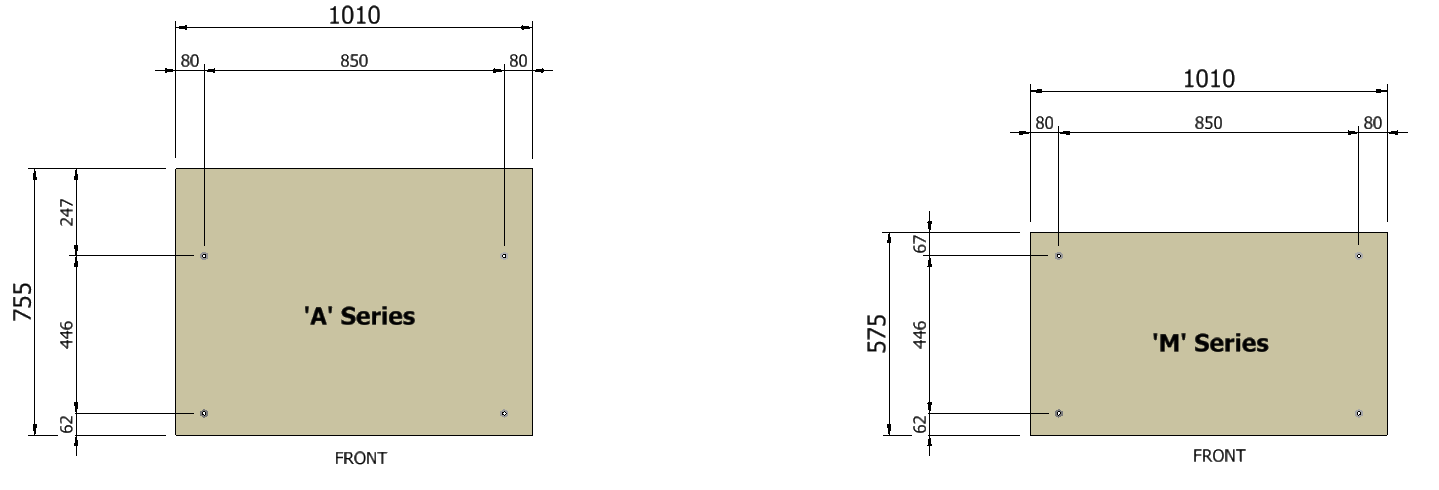

BAC A & M Modules Length and Width Dimensions Diagram

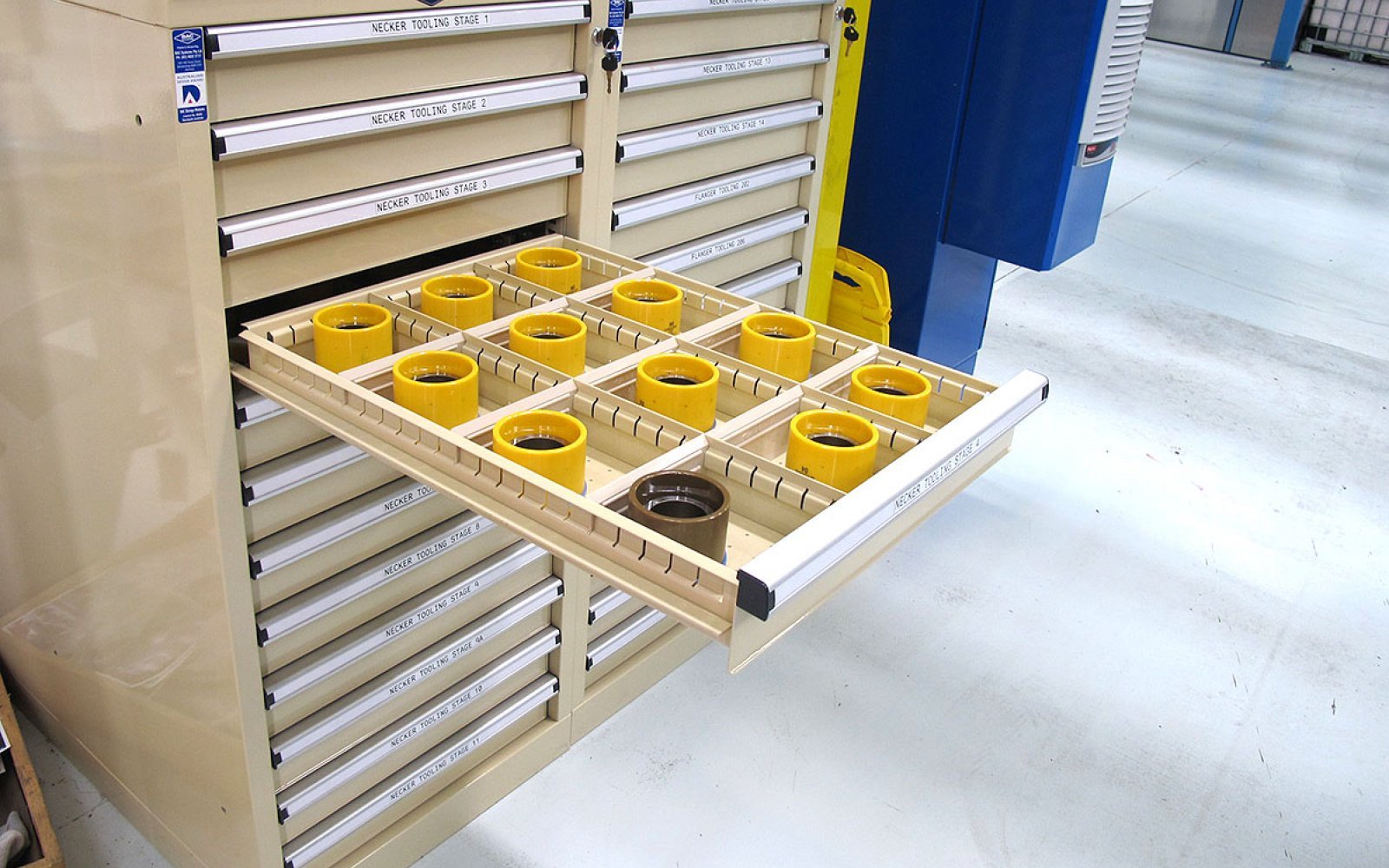

BAC Drawer Storage Modules can be fitted with drawers to their full height. The resulting BAC Full Drawer Cabinets create the most efficient means of high density storage available. Each drawer height can be carefully selected to suit the stock being stored, and the partitioning within each drawer is adjustable and can be made to suit the storage volume requirements.

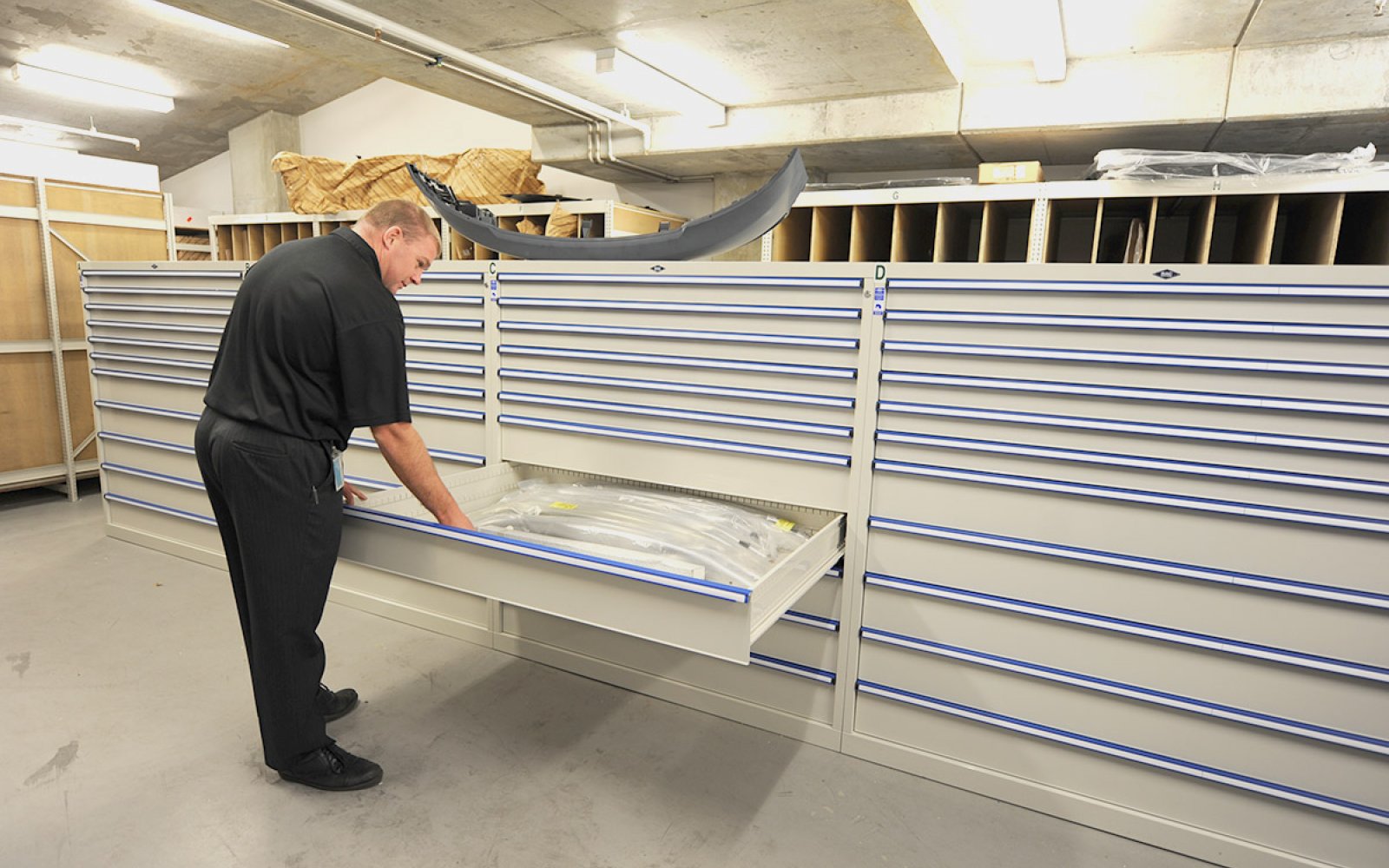

In parts warehouses, a Top Shelf Cabinet, or a cabinet of some other configuration, can be stacked on top of a Full Drawer Cabinet, creating a modular drawer unit up to 4800mm tall. Warehouse pickers can access the upper drawers with a mobile stock picker that elevates the operator to such heights.

Full Drawer Cabinets are available in heights of 2100mm and 2400mm.



BAC Standard Loading Diagrams "A" SERIES

Standard loading diagrams A Intro

Using BAC standard loading diagrams is a quick way to select frequently used configurations for subdividing drawers. They are specified at the time of order and are fitted at the factory to have the drawers ready for loading on delivery. All partitioning material is also available individually for customer installation (see page A1.20 + A1.21 for details).

Standard loading diagrams A 1Standard loading diagrams A 2

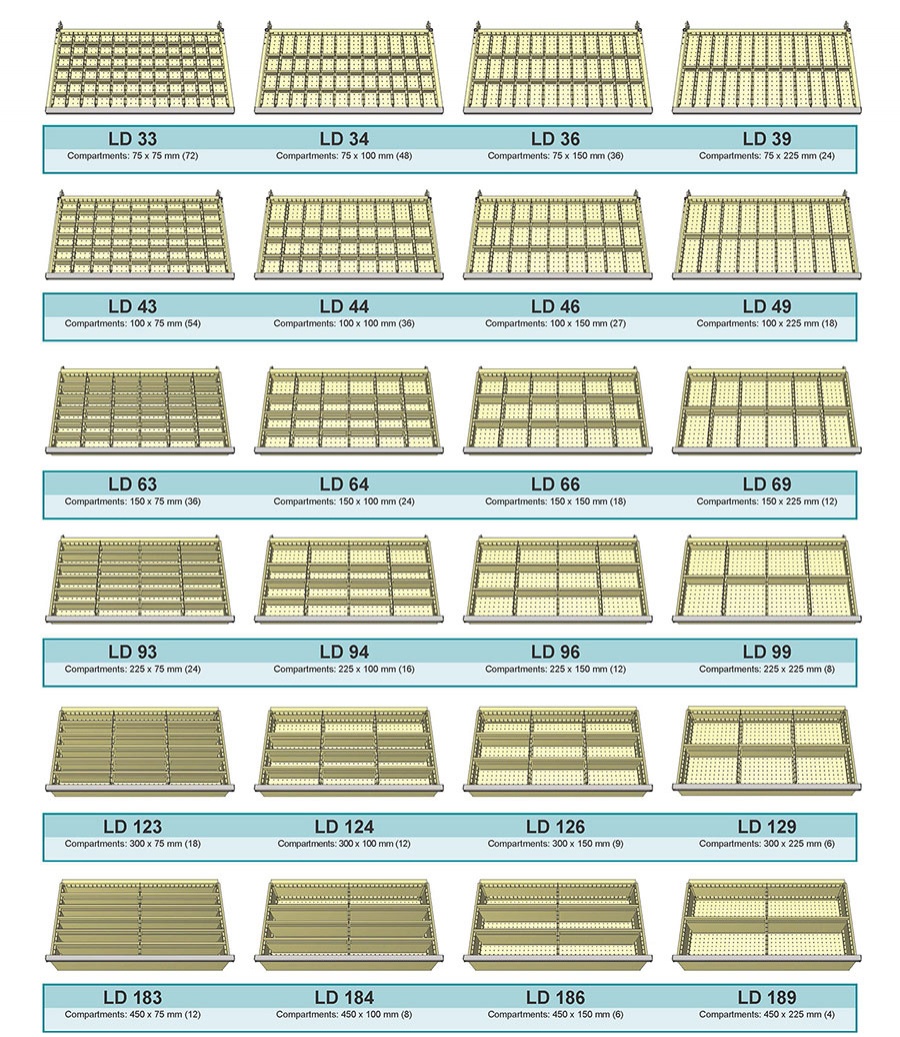

BAC Standard Loading Diagrams "M" SERIES

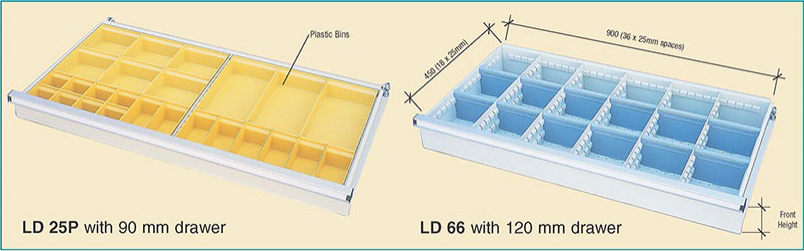

Standard loading diagrams M Intro

BAC Standard loading diagrams are selected form frequently used configurations. They are specified at the time of order and are fitted at the factory to have drawers ready for loading on delivery. An expert advisory service is available to assist with the appropriate selections. All partitioning material can be supplied individually for customer installation (details page A1.20 + A1.21).

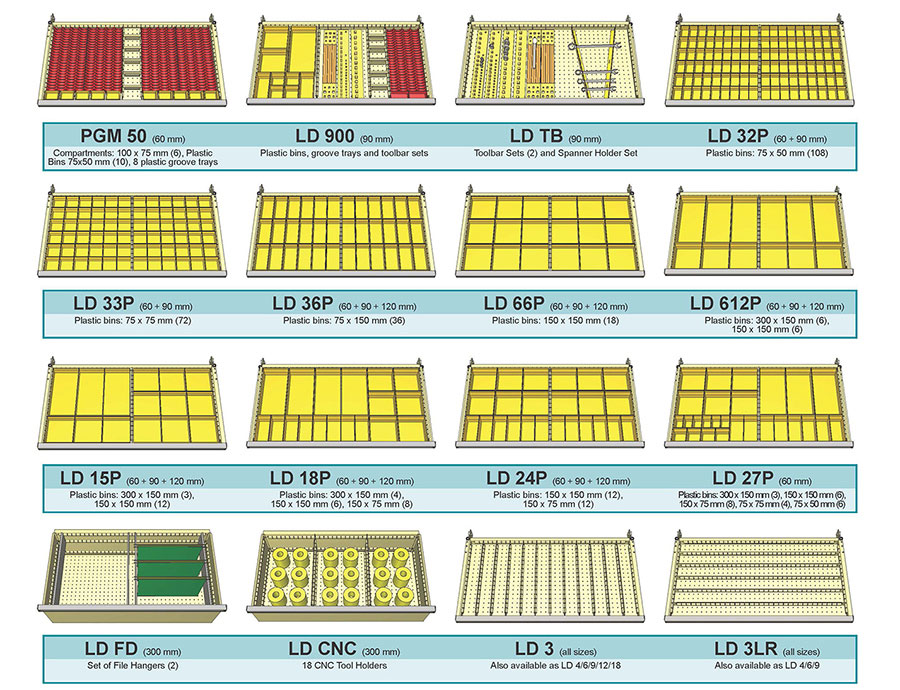

Standard loading diagrams M 1Standard loading diagrams M 2
