BAC Large Plan and Artwork Drawer Cabinets: DL SERIES

DL Series

Cabinet footprint 2360mm wide x 1100mm deep.

Internal drawer dimensions 2250mm wide x 900mm deep.

DL2 Series

Cabinet footprint 2360mm wide x 2200mm deep.

Internal drawer dimensions 2250mm wide x 1800mm deep.

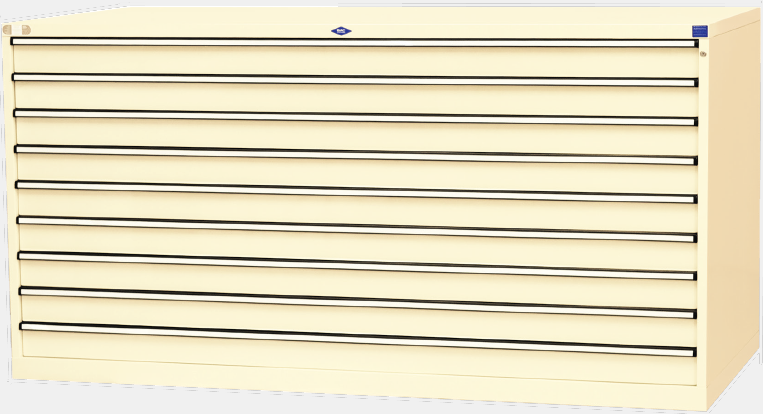

BAC Large Plan and Artwork Drawer Cabinet - DL Series

BAC “DL” and “DL2” Series are our largest standardised drawer storage modules. These are ideal for protective storage of artworks, textiles, gaskets and all flat-bulk items. They are supplied with a cylinder lock acting on all drawers perforated drawer base, and leveling feet.

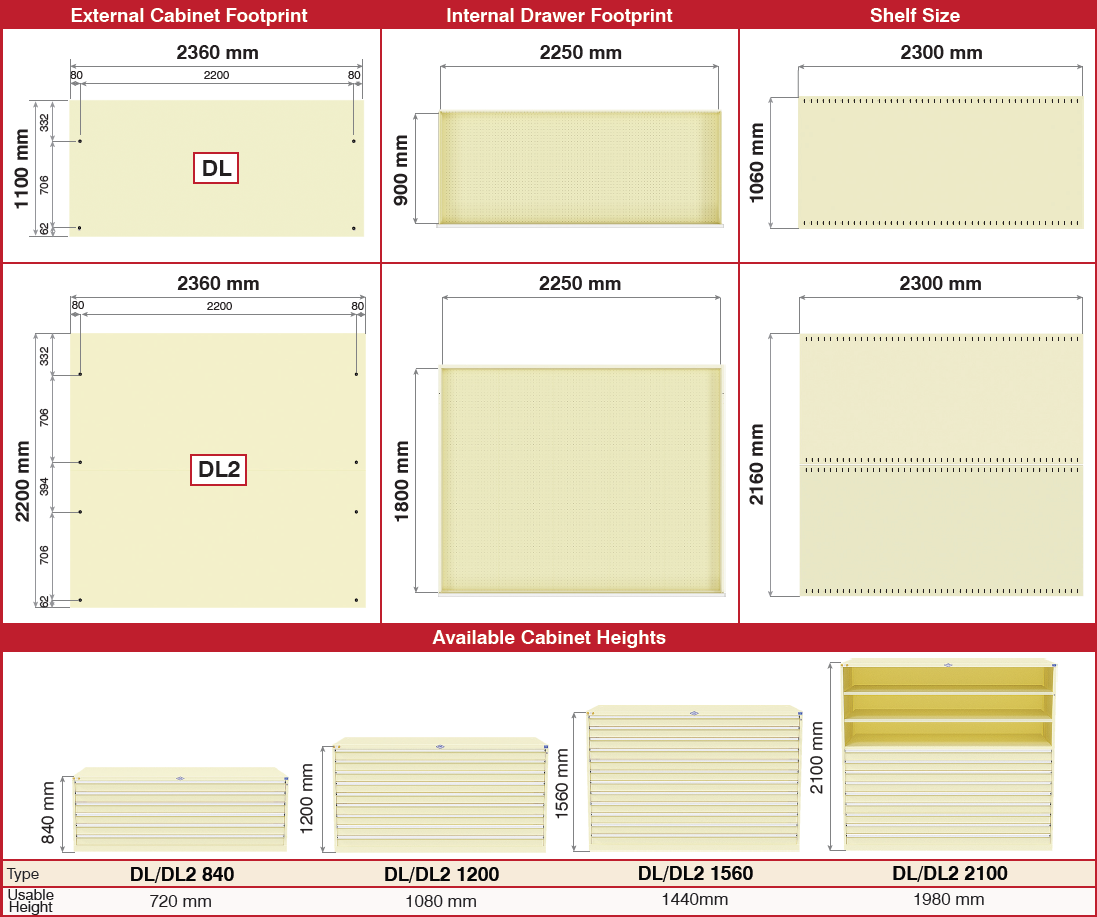

DL Series Large Plan and Artwork Drawers - Standard Dimensions DL Series Large Plan Drawers - Typical Drawer Data

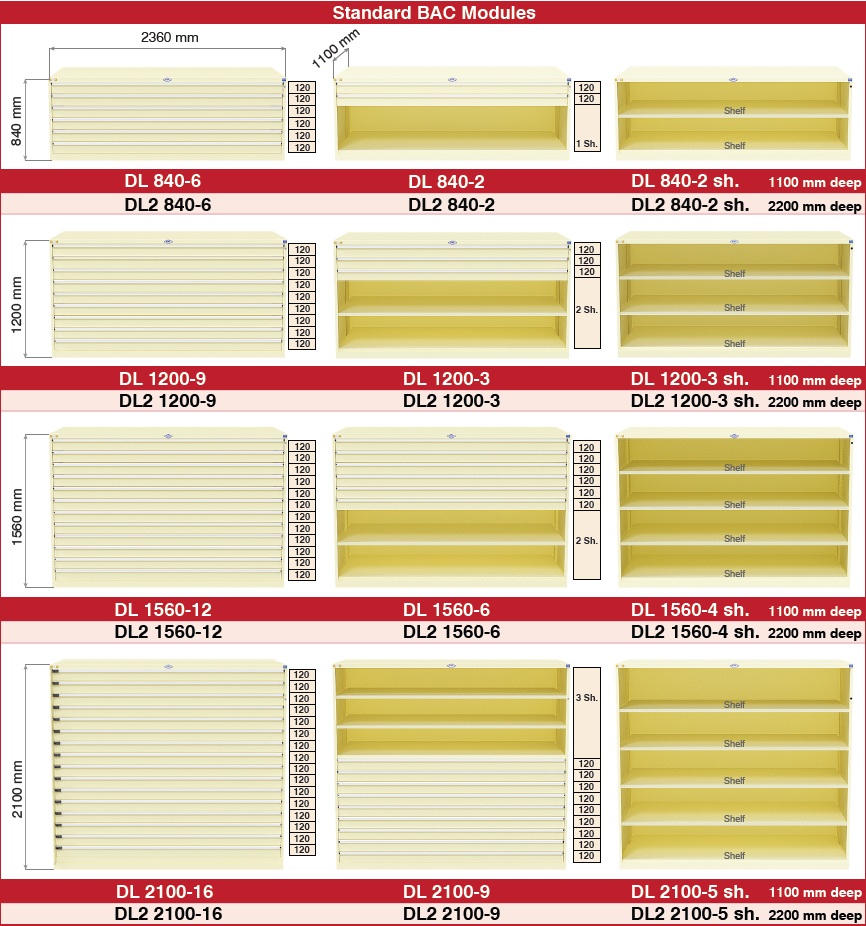

Standard Cabinet Configurations - DL Series

(Contact BAC Systems for custom cabinet configurations)

Standard DL Series Large Paper and Art Drawer Configurations
