BAC Hose Storage Modules: DH Series

Cabinet footprint 1460mm wide x 1100mm deep.

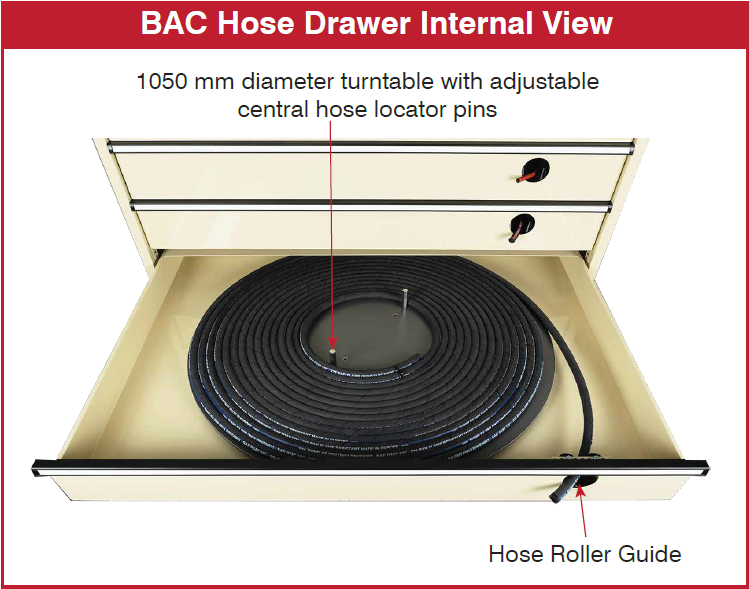

Drawers with internal turntables to dispense hose stored in a flat coil.

No modern Hose Making Workshop is complete without the range of BAC Hose Making Workshop Storage Solutions. The premier system in the range is the BAC Hose Drawer Module, with many decades of refinement in its design. Now with a smaller footprint than previous generations, it is a market-leading concept for storing hydraulic hoses supplied in flat coils and for loose hoses of up to 1 ½” nominal bore (-24 hose). Capable of holding 15m / 50’ of this larger hose, the drawer’s internal turntable allows technicians to smoothly draw out the hose across to the cut-off saw. When you have cut off the length you require, simply slide the drawer open and wind the turntable to recoil the excess hose.

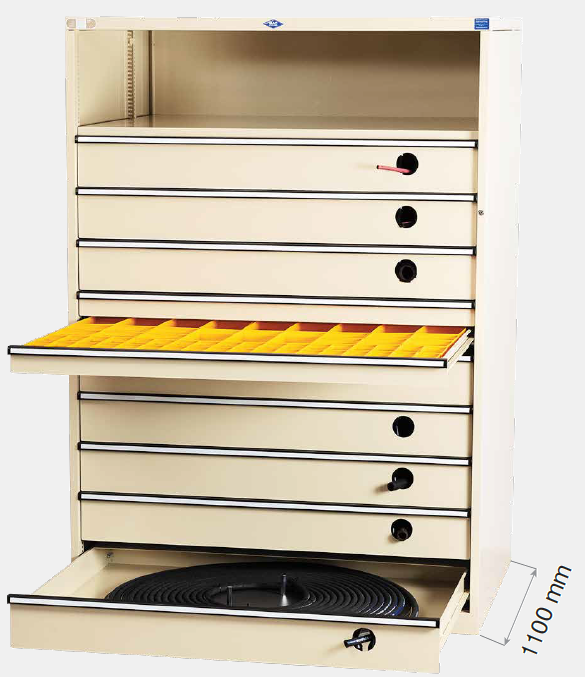

BAC Hose Drawer Modules now come complete with shelving above for storing extra stock of flat hose coils, so they are ready for use when a coil runs out. Additionally, smaller Hose Making Workshops will now greatly benefit from the addition of 3 large drawers, with adjustable internal partitioning and bins, for storing hose-end fittings and dust caps. BAC Hose Drawer Modules can come in different cabinet heights, with different drawer layouts, and even as a mobile unit if you feel it is better suited to your workshop. Please reach out to the BAC Technical Sales Team to discuss variations to the following two standard configurations.

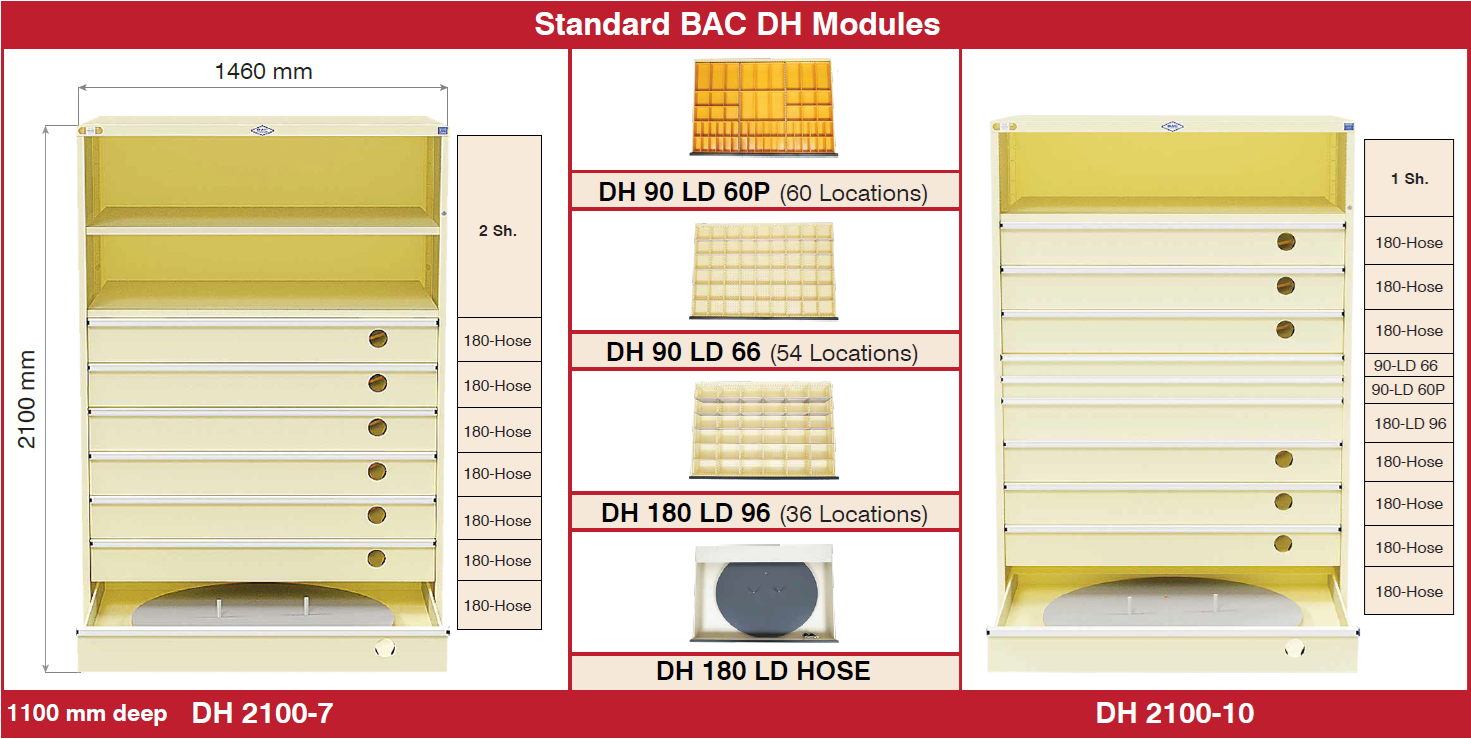

Standard Cabinet Configurations - DH Series

(Contact BAC Systems for custom cabinet configurations)
