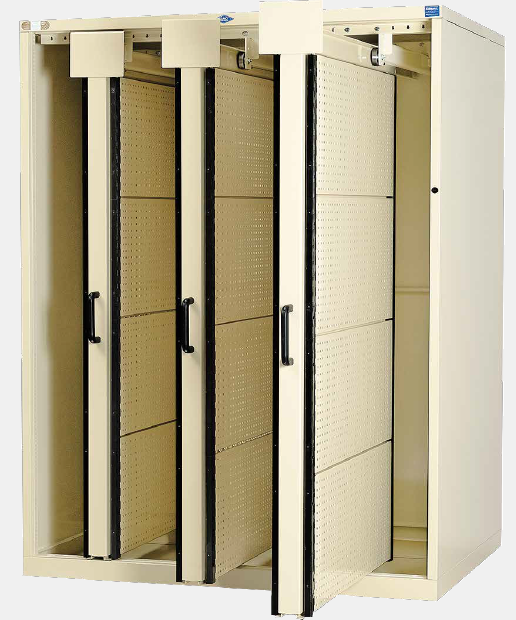

BAC Vertical Panel Drawer Modules: DP SERIES

Cabinet footprint 1460mm wide x 1100mm deep.

Fitted with Vertical Mesh Drawers (Dual-faced) 1800mm x 950mm each

BAC Vertical Panel Drawers are designed primarily for tool display storage. BAC Panels are fastened to our industrial Vertical Drawer Structure and roll out on 62 mm bearings so that your tools can glide out quickly for easy access.
BAC Vertical Panel Drawers are supplied with a standard collection of tool storage accessories.
Each Vertical Drawer is double-sided, with 1.71m² of Panel for each face of a BAC Vertical Panel Drawer.

If you wish to use the BAC Panel Drawer for CNC tool storage, BAC also offers a range of CNC Vertical Drawers allowing easy access and safe tool storage. Each individual console holds 7 different CNC tools, with a complete Vertical CNC Drawer face holding 28 tools in the standard
configurations.

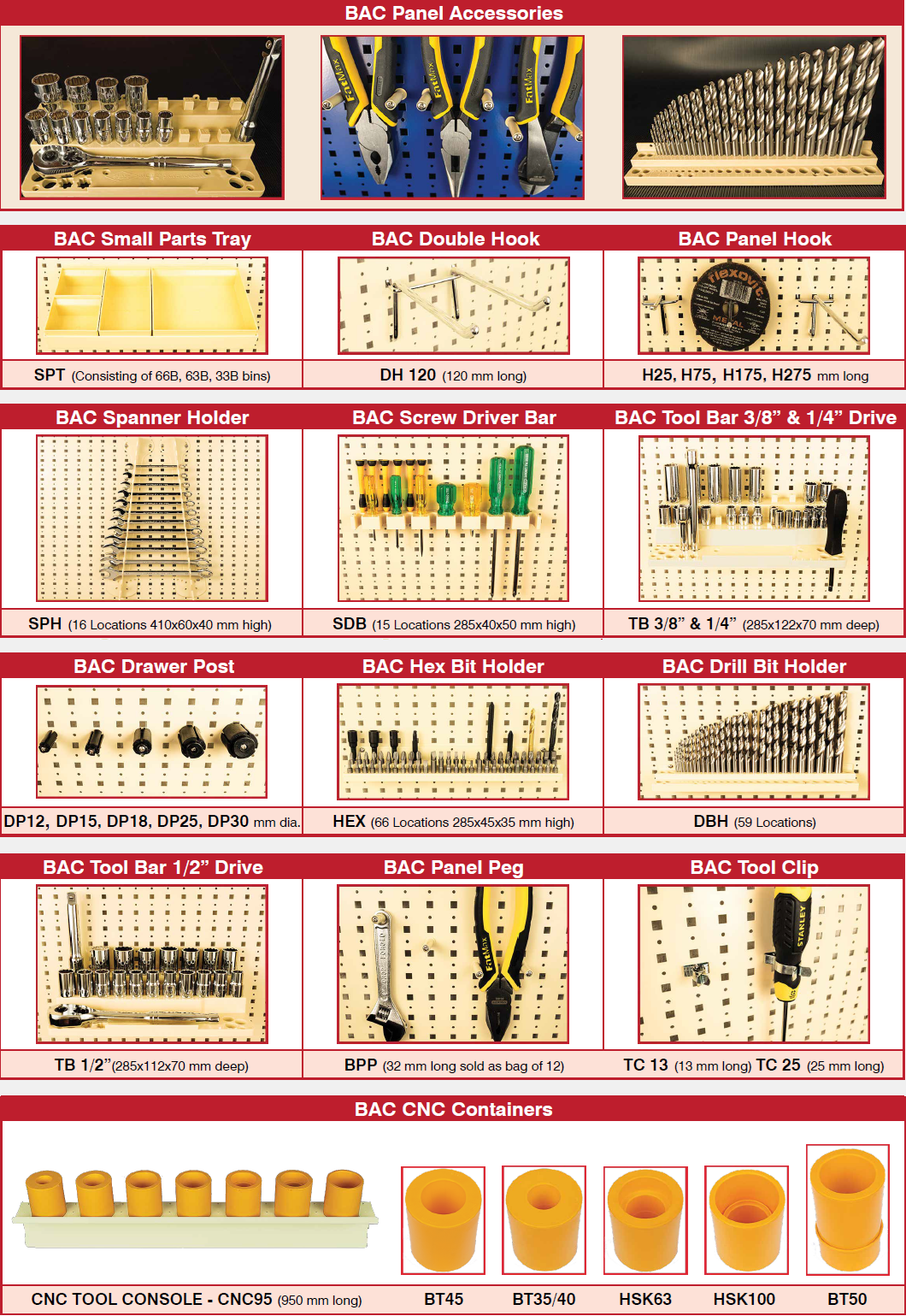

In both the BAC Vertical Panel Drawer and the BAC Vertical CNC Drawers, you can adjust the number of drawers, and the spacing between them. At the end of this page, you will find examples of the standard BAC tool storage accessories, including the different CNC tool holders that are available.

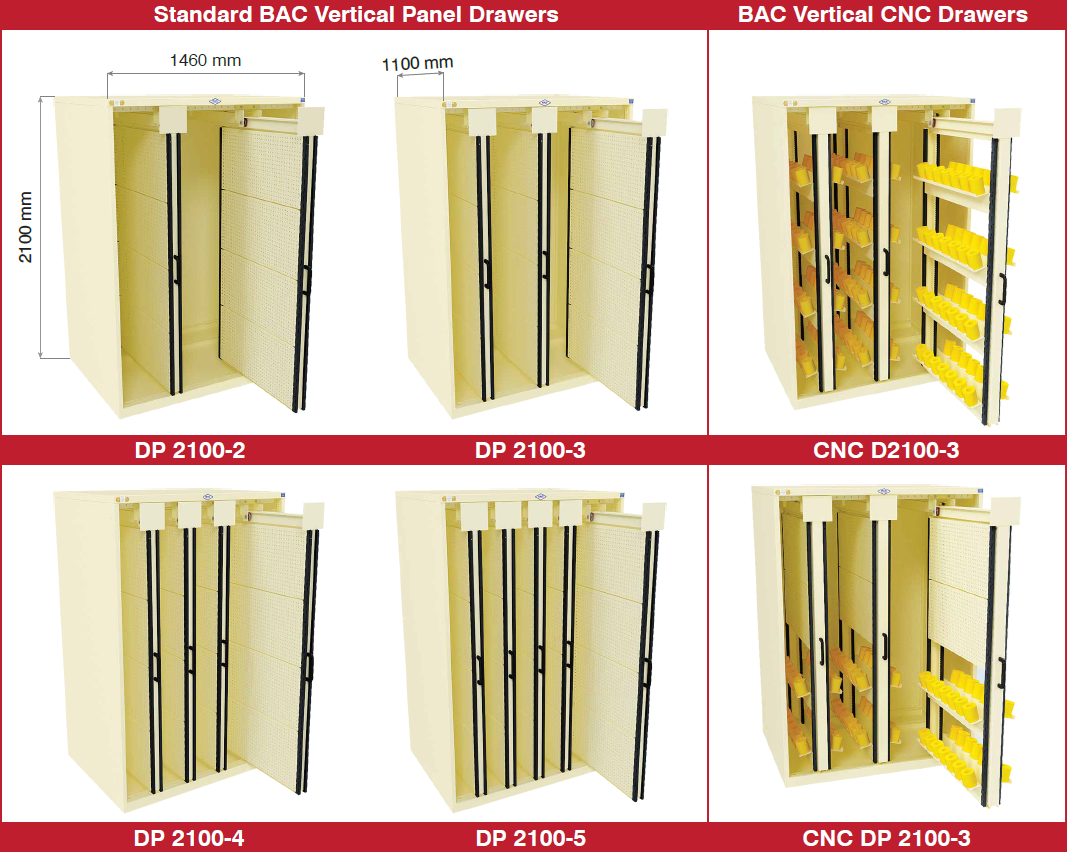

Standard Cabinet Configurations - DP Series

(Contact BAC Systems for custom cabinet configurations)
